Terraform 和Terraformer on AWS 动手实践
1 文档目的
Terraform 是一个安全和高效的用来构建、更改和合并基础架构的工具。采用 Go 语言开发。Terraform 可管理已有的流行的服务，并提供自定义解决方案。

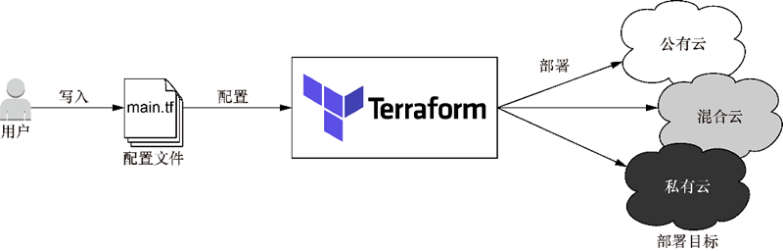

Terraform 的基本原则是，它允许编写人类可读的配置代码来定义 IaC。借助配置代码，可以把可重复的、短暂的、一致的环境部署到公有云、私有云和混合云上。
本文主要介绍在AWS上使用Terraformer 收集已经部署的基础架构资源和使用Terraform 来部署基础资源。
2 安装
2.1 基础环境
测试使用redhat 7.9
2.2 安装aws cli
# curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
# yum -y install unzip
# unzip awscliv2.zip
# ./aws/install
2.3 安装terraform
# yum install -y yum-utils
# yum-config-manager /
--add-repo https://rpm.releases.hashicorp.com/RHEL/hashicorp.repo
# yum -y install terraform
# terraform --version
Terraform v1.3.4
on linux_amd64
2.4 安装terraformer
# export PROVIDER=aws
# curl -LO /
https://github.com/GoogleCloudPlatform/terraformer/releases/download/$(curl -s /
https://api.github.com/repos/GoogleCloudPlatform/terraformer/releases/latest | /
grep tag_name | cut -d '"' -f 4)/terraformer-${PROVIDER}-linux-amd64
# chmod +x terraformer-${PROVIDER}-linux-amd64
# mv terraformer-${PROVIDER}-linux-amd64 /usr/local/bin/terraformer
# terraformer --version
version v0.8.22
3 Terraformer 获取现有资源
3.1 初始化provider
# mkdir tfer && cd tfer
# vi provider.tf
provider "aws" {
region = "cn-northwest-1"
}
# terraform init
3.2 获取现有资源

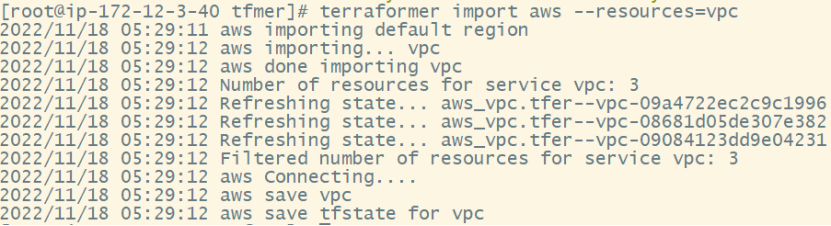

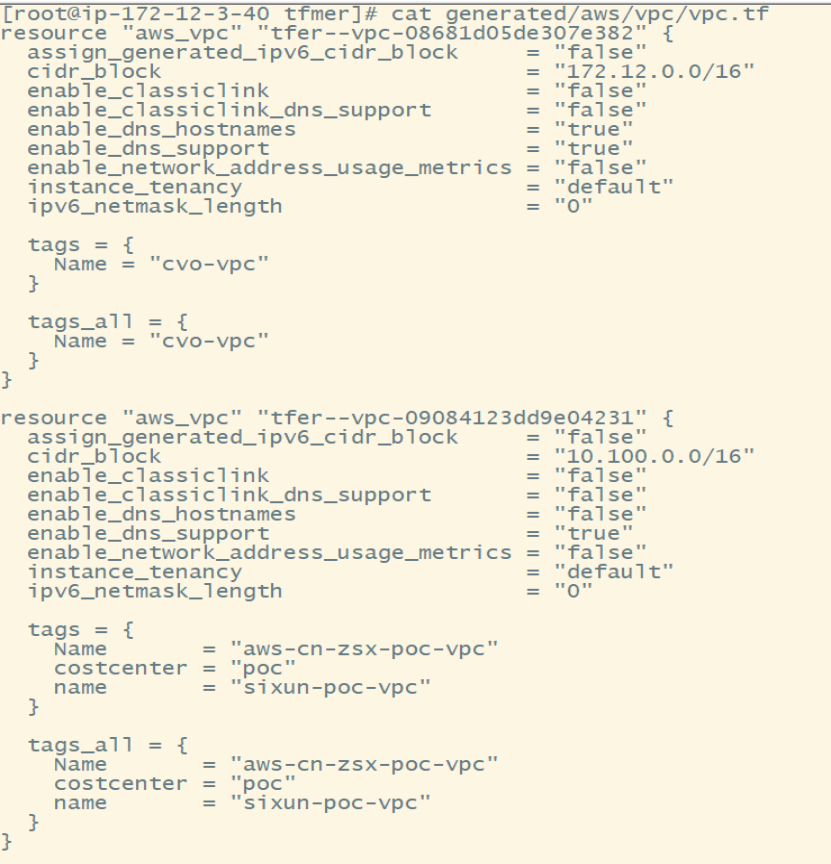

1) 获取VPC
# terraformer import aws --resources=vpc

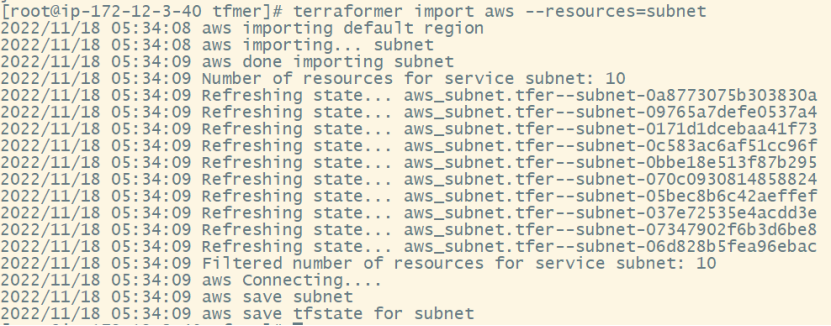

2) 获取子网：
# terraformer import aws --resources=subnet

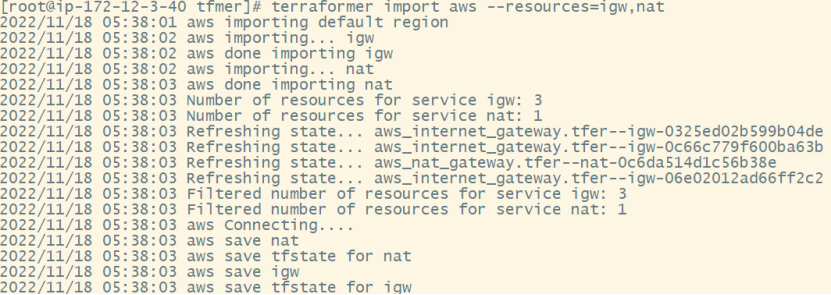

3) 获取igw，nat
# terraformer import aws --resources=igw,nat

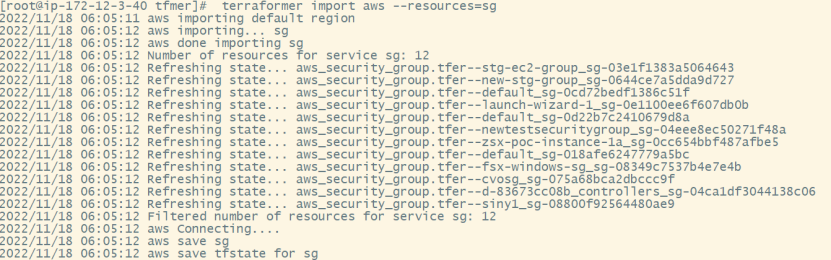

4) 获取安全组
# terraformer import aws --resources=sg

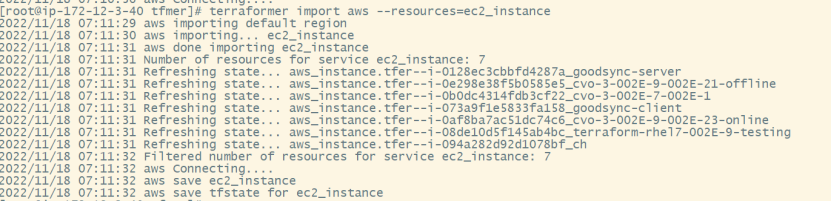

5) 获取实例
# terraformer import aws --resources=ec2_instance
更多资源名称，可访问：
https://github.com/GoogleCloudPlatform/terraformer/blob/master/docs/aws.md
4 Terraform 创建资源
Provider 资源参数可访问官网：
https://registry.terraform.io/providers/hashicorp/aws/latest/docs
4.1 配置provider
# vi provider.tf
terraform {
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 4.0"
}
}
}
provider "aws" {
region = "cn-northwest-1"
}

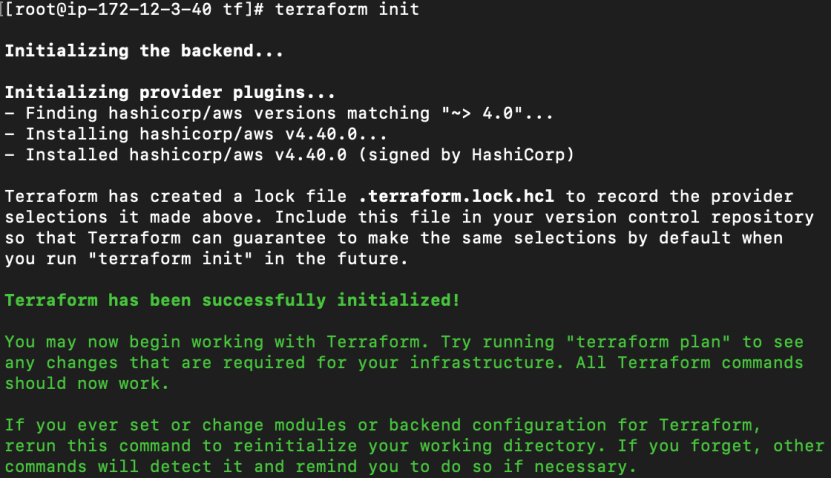

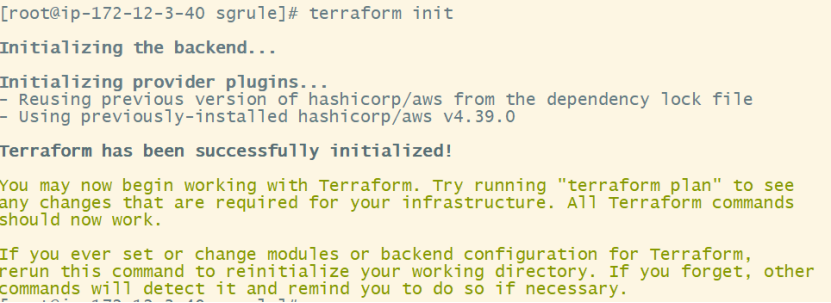

# terraform init

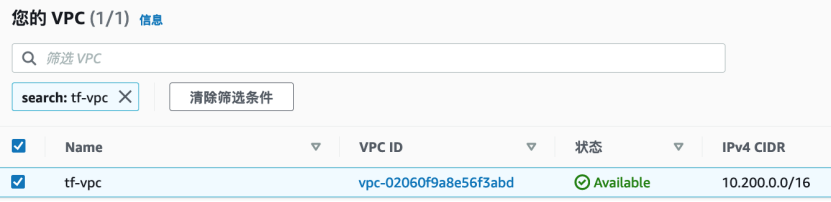

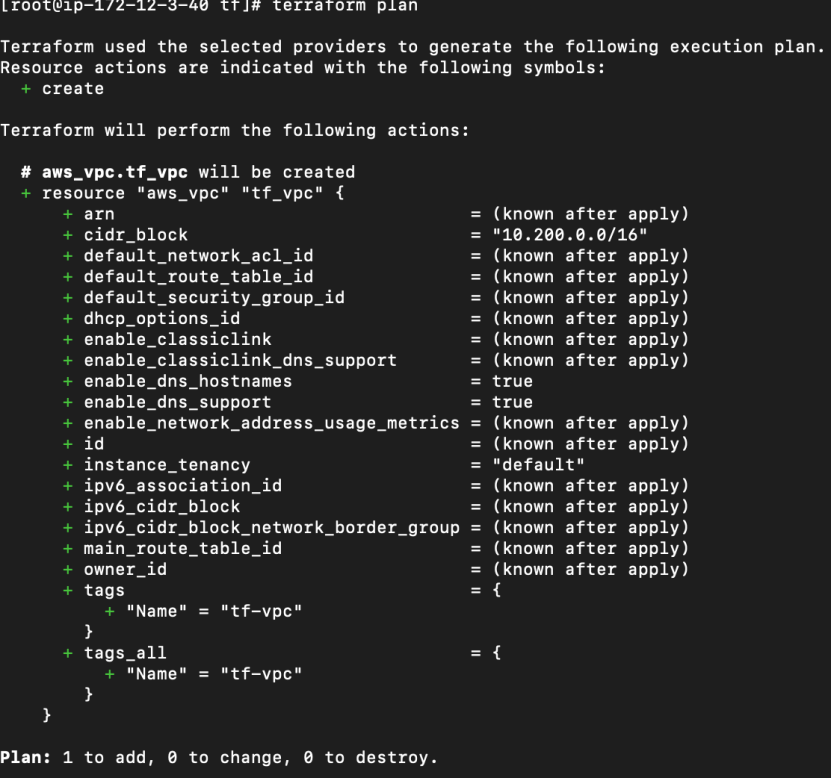

4.2 创建vpc
# vi vpc.tf
resource "aws_vpc" "tf_vpc" {
cidr_block = "10.200.0.0/16"
enable_dns_hostnames = "true"
enable_dns_support = "true"
tags = {
Name = "tf-vpc"
}
}

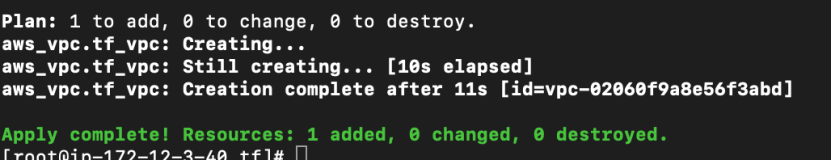

# terraform plan
# terraform apply -auto-approve

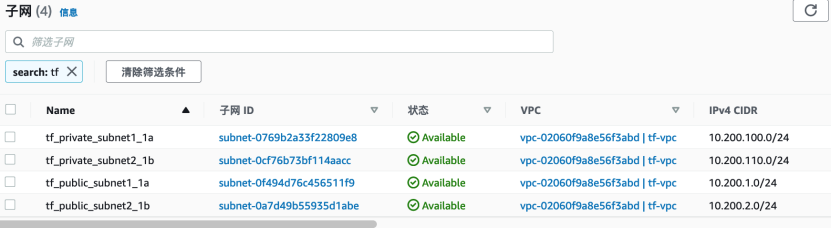

4.3 创建子网
# vi subnet.tf
resource "aws_subnet" "tf_public_subnet1" {
vpc_id = aws_vpc.tf_vpc.id
cidr_block = "10.200.1.0/24"
map_public_ip_on_launch = "true"
availability_zone = "cn-northwest-1a"
tags = {
Name = "tf_public_subnet1_1a"
}
}
resource "aws_subnet" "tf_public_subnet2" {
vpc_id = aws_vpc.tf_vpc.id
cidr_block = "10.200.2.0/24"
map_public_ip_on_launch = "true"
availability_zone = "cn-northwest-1b"
tags = {
Name = "tf_public_subnet2_1b"
}
}
resource "aws_subnet" "tf_private_subnet1" {
vpc_id = aws_vpc.tf_vpc.id
cidr_block = "10.200.100.0/24"
availability_zone = "cn-northwest-1a"
tags = {
Name = "tf_private_subnet1_1a"
}
}
resource "aws_subnet" "tf_private_subnet2" {
vpc_id = aws_vpc.tf_vpc.id
cidr_block = "10.200.110.0/24"
availability_zone = "cn-northwest-1b"
tags = {
Name = "tf_private_subnet1_1b"
}
}

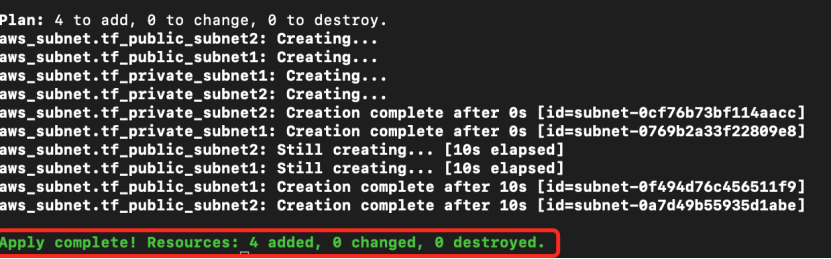

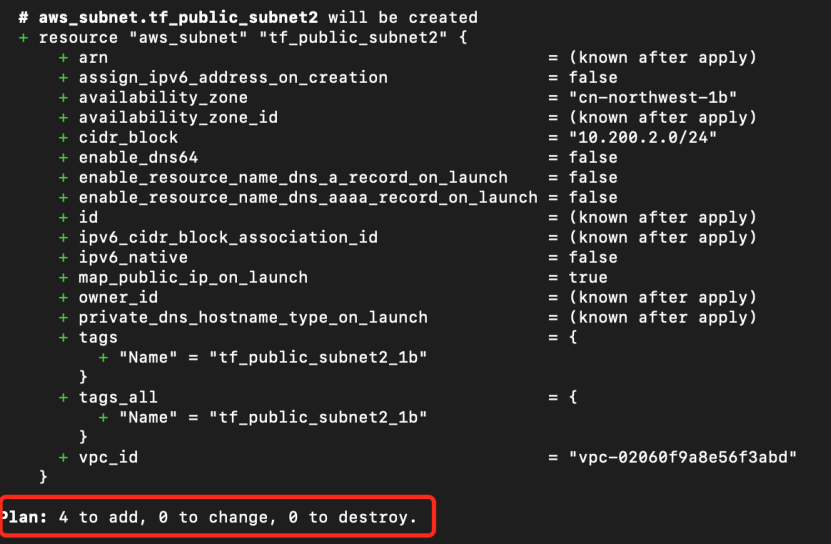

# terraform plan
# terraform apply -auto-approve

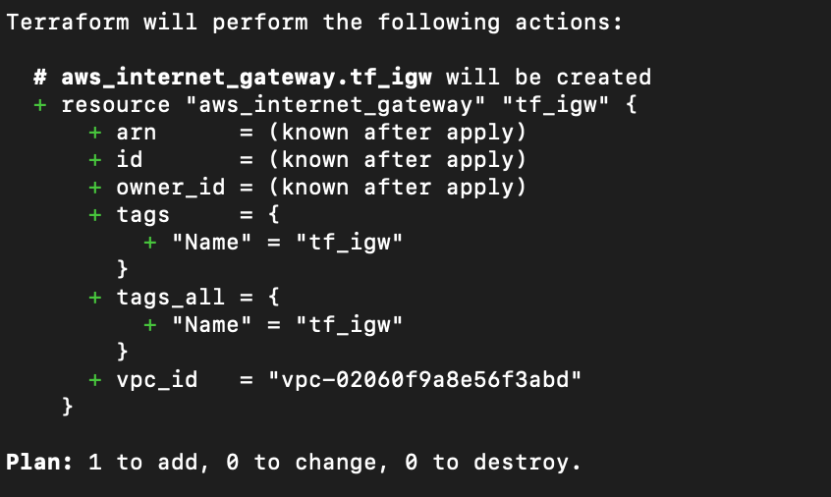

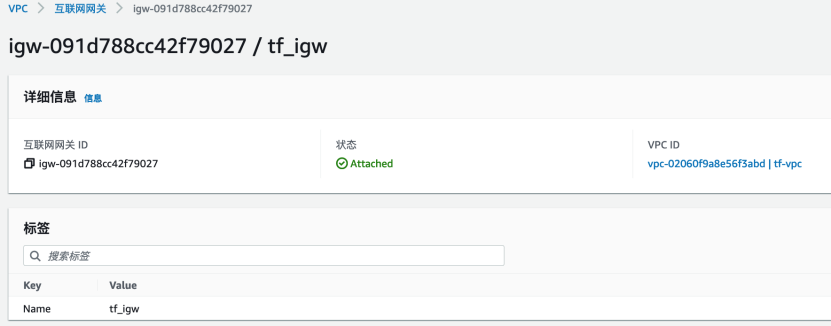

4.4 创建IGW
# vi igw.tf
resource "aws_internet_gateway" "tf_igw" {
vpc_id = aws_vpc.tf_vpc.id
tags = {
Name = "tf_igw"
}
}
# terraform plan
# terraform apply -auto-approve

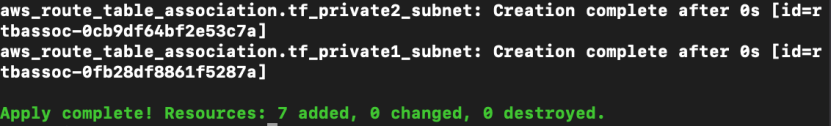

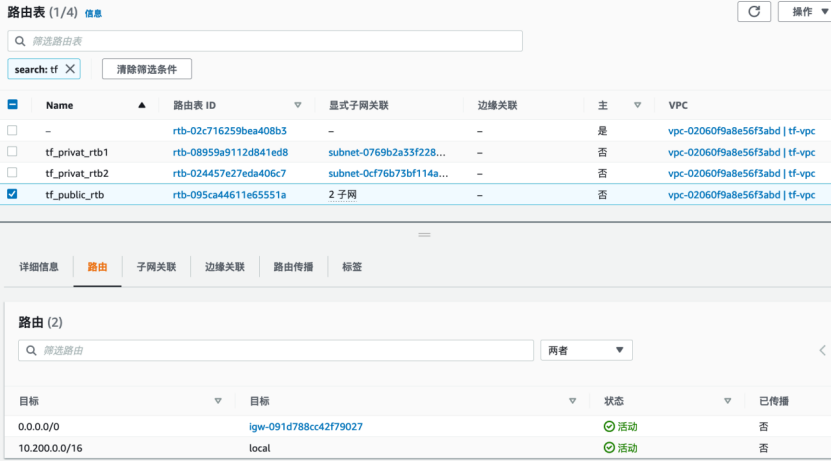

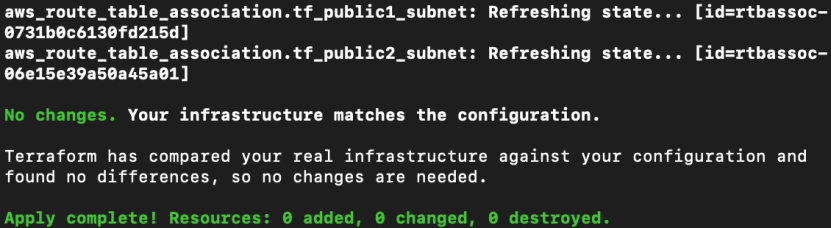

4.5 创建路由表
# vi rtb.tf
# terraform plan
# terraform apply -auto-approve

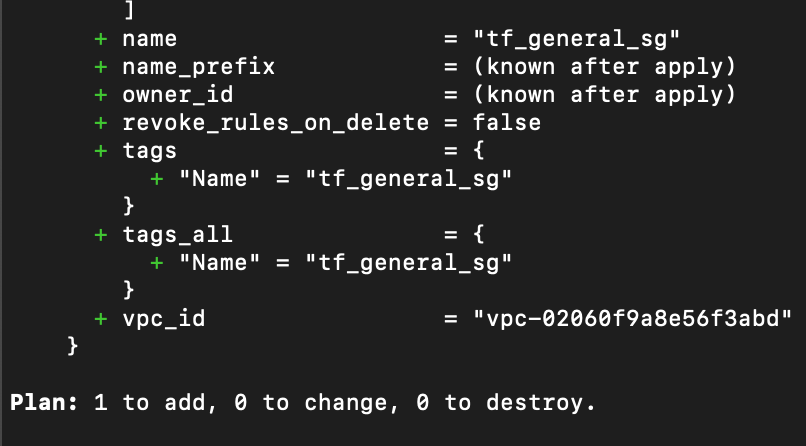

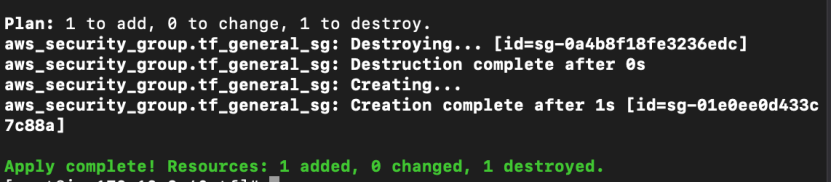

4.6 创建安全组
# vi sg.tf
resource "aws_security_group" "tf_general_sg" {
name = "tf_general_sg"
description = "General inbound traffic configuration of tf testing "
vpc_id = aws_vpc.tf_vpc.id
ingress {
description = "https"
from_port = 443
to_port = 443
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
ingress {
description = "http"
from_port = 80
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
ingress {
description = "ssh"
from_port = 22
to_port = 22
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
ingress {
description = "icmp"
from_port = "-1"
to_port = "-1"
protocol = "icmp"
cidr_blocks = ["0.0.0.0/0"]
}
ingress {
description = "8088"
from_port = 8088
to_port = 8088
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
tags = {
Name = "tf_general_sg"
}
}
# terraform plan
# terraform apply -auto-approve
4.7 创建实例

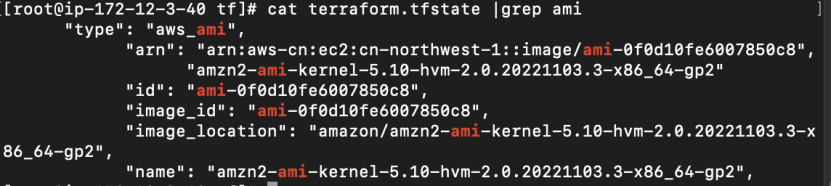

4.7.1 设置ami
# vi datasource.tf
data "aws_ami" "Amazon_Linux_2" {
most_recent = true
owners = ["141808717104"]
filter {
name = "name"
values = ["amzn2-ami-kernel-5.10-hvm-2.0.20221103.3-x86_64-gp2"]
}
}
# terraform apply -auto-approve

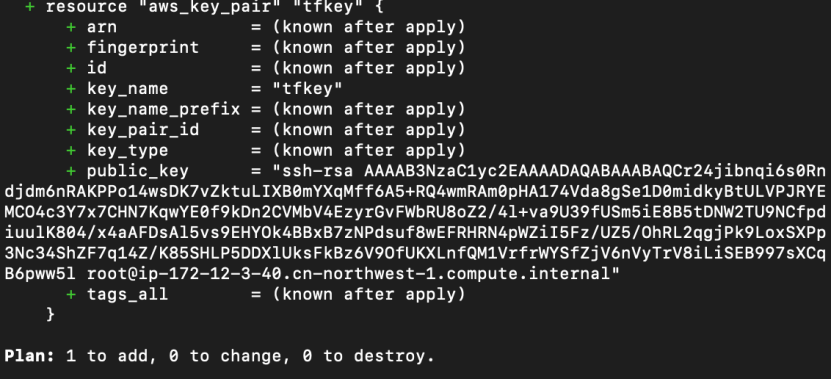

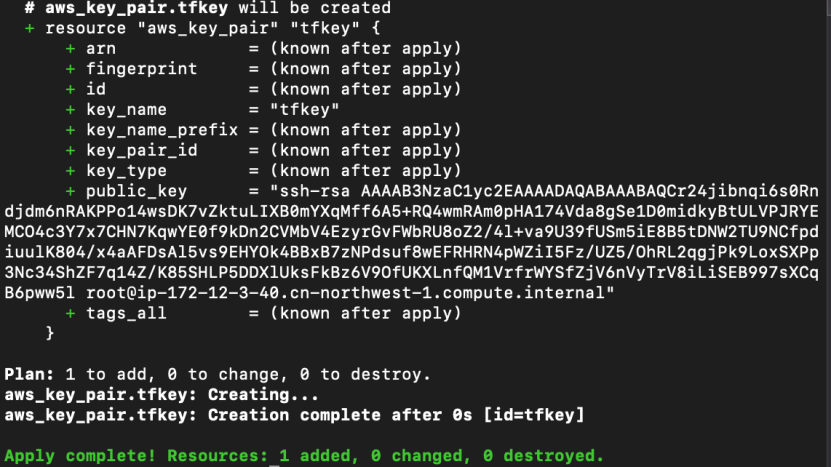

4.7.2 创建密钥对

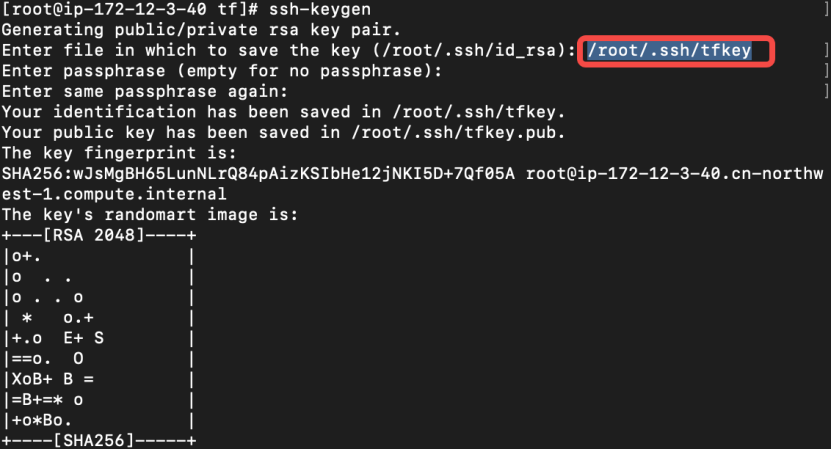

# ssh-keygen
# vi keypair.tf
resource "aws_key_pair" "tfkey" {
key_name = "tfkey"
public_key = file("/root/.ssh/tfkey.pub")
}
# terraform plan
# terraform apply -auto-approve
4.7.3 编辑userdata
# vi userdata.tpl
#!/bin/bash
sudo amazon-linux-extras install nginx1 -y
sudo systemctl enable nginx
sudo systemctl start ngnix

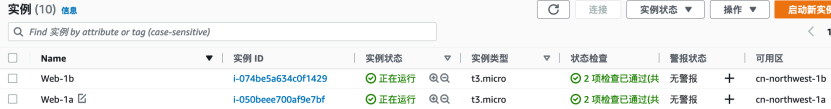

4.7.4 创建实例
# vi instance.tf
resource "aws_instance" "web-1a" {
ami = data.aws_ami.Amazo_Linux_2.id
instance_type = "t3.micro"
subnet_id = aws_subnet.tf_public_subnet1.id
vpc_security_group_ids = [aws_security_group.tf_general_sg.id]
key_name = aws_key_pair.tfkey.id
user_data = file("./userdata.tpl")
root_block_device {
volume_size = 30
volume_type = "gp3"
}
tags = {
Name = "Web-1a"
}
}
resource "aws_instance" "web-1b" {
ami = data.aws_ami.Amazo_Linux_2.id
instance_type = "t3.micro"
subnet_id = aws_subnet.tf_public_subnet2.id
vpc_security_group_ids = [aws_security_group.tf_general_sg.id]
key_name = aws_key_pair.tfkey.id
user_data = file("./userdata.tpl")
root_block_device {
volume_size = 30
volume_type = "gp3"
}
tags = {
Name = "Web-1b"
}
}

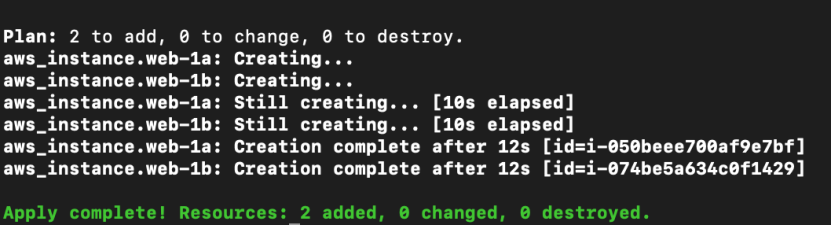

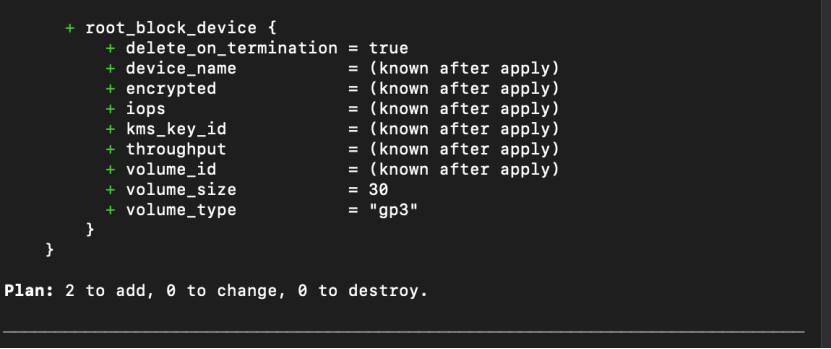

# terraform plan
# terraform apply -auto-approve
4.8 创建ELB

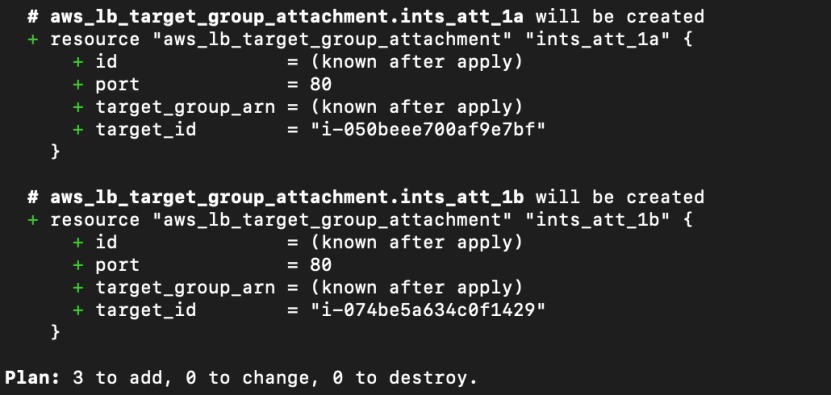

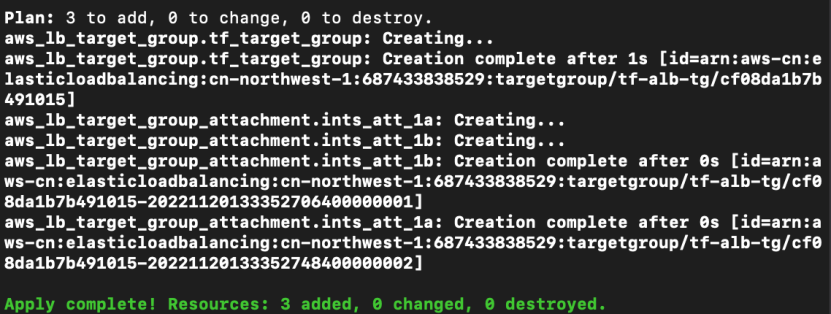

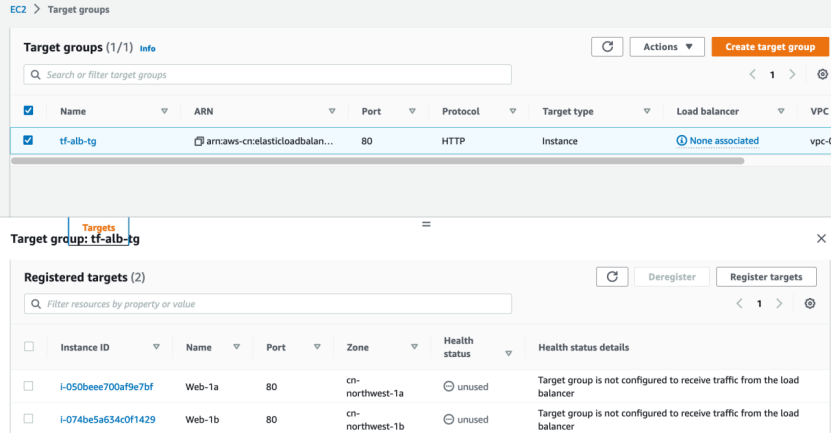

4.8.1 创建目标群组
# vi targetgroup.tf
resource "aws_lb_target_group" "tf_target_group" {
name = "tf-alb-tg"
target_type = "instance"
port = 80
protocol = "HTTP"
vpc_id = aws_vpc.tf_vpc.id
}
resource "aws_lb_target_group_attachment" "ints_att_1a" {
target_group_arn = aws_lb_target_group.tf_target_group.arn
target_id = aws_instance.web-1a.id
port = 80
}
resource "aws_lb_target_group_attachment" "ints_att_1b" {
target_group_arn = aws_lb_target_group.tf_target_group.arn
target_id = aws_instance.web-1b.id
port = 80
}
# terraform plan
# terraform apply -auto-approve

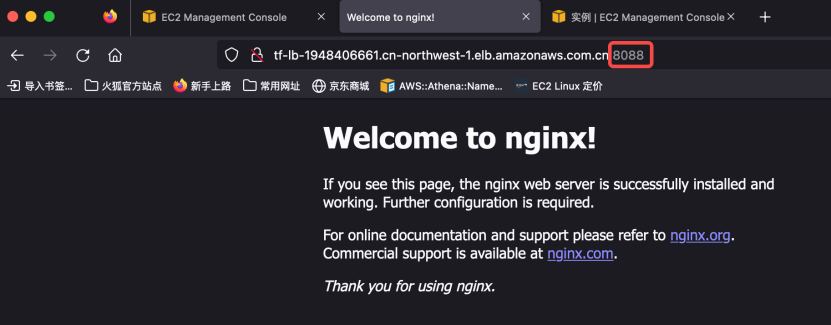

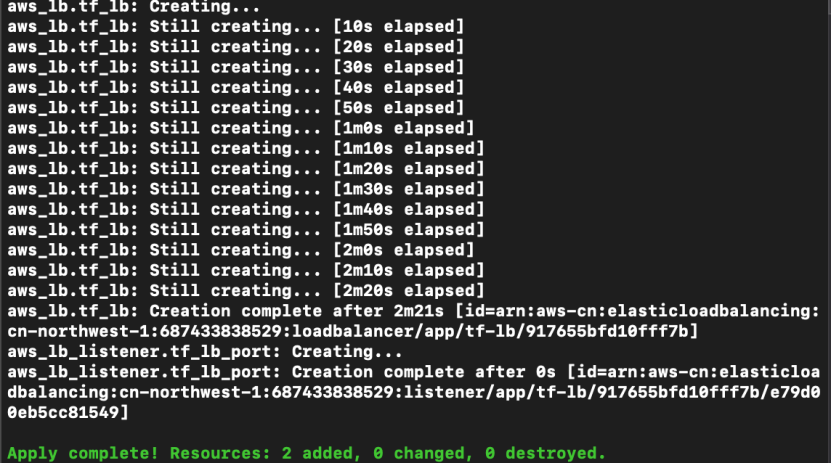

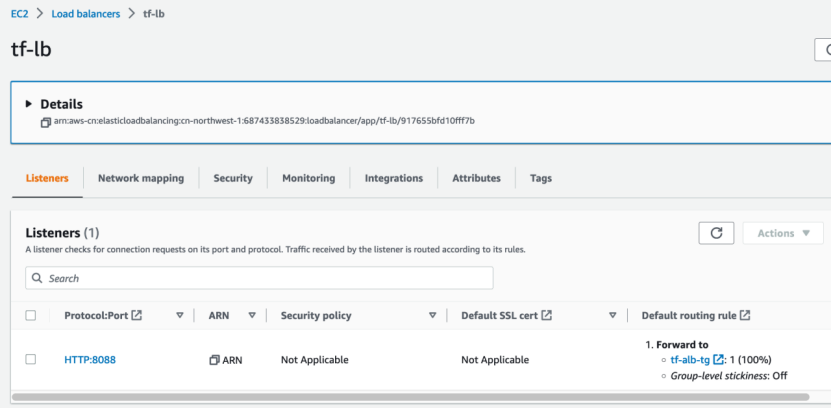

4.8.2 创建elb
# vi elb.tf
resource "aws_lb" "tf_lb" {
name = "tf-lb"
internal = false
load_balancer_type = "application"
security_groups = [aws_security_group.tf_general_sg.id]
subnets = [aws_subnet.tf_public_subnet1.id,aws_subnet.tf_public_subnet2.id]
enable_deletion_protection = true
tags = {
Name = "tf-lb"
}
}

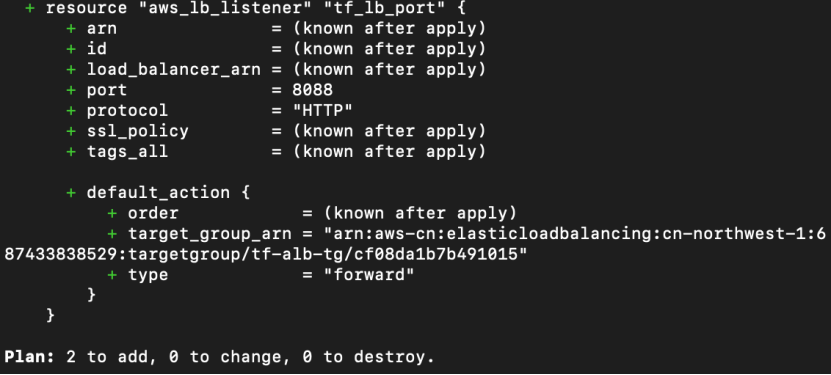

resource "aws_lb_listener" "tf_lb_port" {
load_balancer_arn = aws_lb.tf_lb.arn
port = "8088"
protocol = "HTTP"
default_action {
type = "forward"
target_group_arn = aws_lb_target_group.tf_target_group.arn
}
}
# terraform plan
# terraform apply -auto-approve
5 Terraform 删除资源

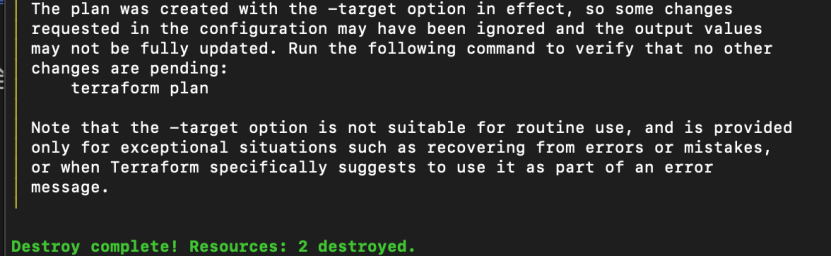

1 删除单个资源

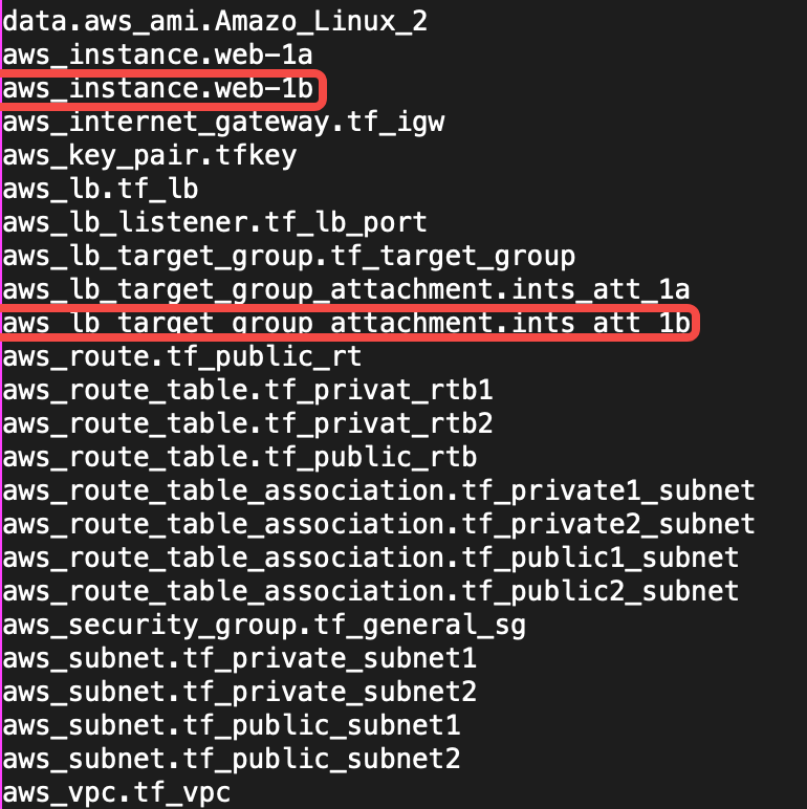

# terraform state list
# terraform destroy -target=aws_instance.web-1b -auto-approve

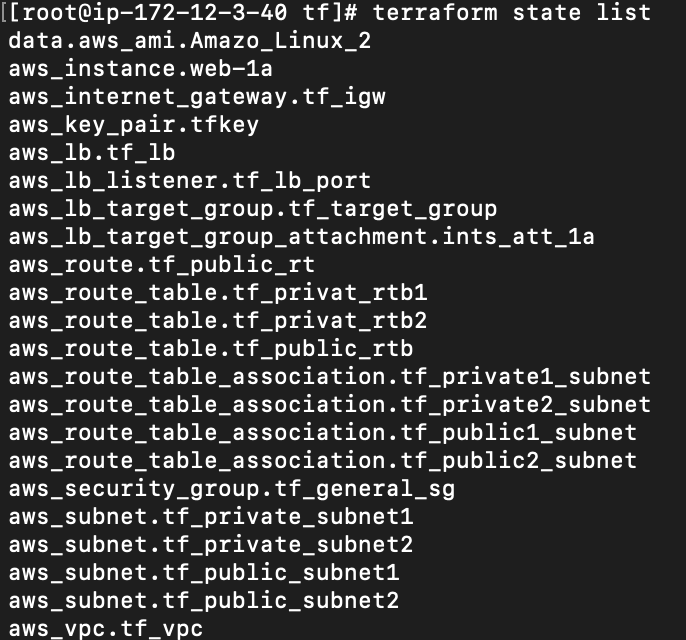

# terraform state list

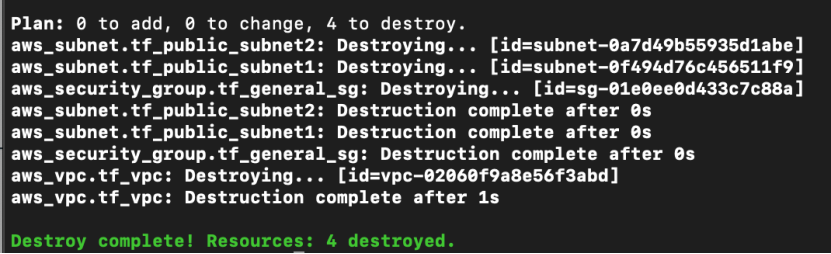

2 删除全部资源
# terraform destroy -auto-approve
# terraform state list
6 结束语
l 本文档适合在AWS平台上学习和动手练习；
l Terraform使用provider来定义所使用的平台，因此不可一套代码在多个平台部署，需要在相应的平台下重新编写相应的代码。
